60Hz IP68 Waterproof LED Driver 150W 6.5A With Single Output , 24v LED Driver F-150-24 manufacturer from China Shenzhen Dongdahua Technology Co., Ltd.,

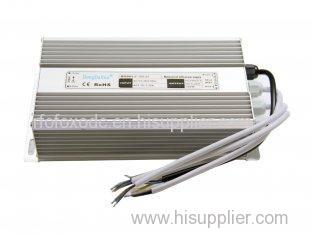

60Hz IP68 Waterproof LED Driver 150W 6.5A With Single Output , 24v LED Driver

Place of Origin:

Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: F-150-24

Over-voltage Protection Waterproof LED Drive

Over-voltage Protection Waterproof LED Driver Power Supply 150W 24VDC 6.5A IP68 EN60950-1

Quick detail:

Power: 150W

Input: AC110-264V

Output: DC 12V 24V

Size: 200.1*120*53

Certificate: CE&ROHS

Warranty: 2 years

Specifications:

Product Electric Parameters
Input specification	Input voltage		AC90V---264V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Start-up time		1S (230V Input, Io=100%)
	keep time		20mS (230V Input, Io=100%)
	Voltage regulation		(full)0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input--ground		1500VAC/1min
	Output---ground		500VAC/1min
Safety standards	According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	2000M
Structure	Size (mm)	230(L)120(W)58(H)
Cooling method	Cooling method	Mr. David Zeng Tel: 86-755-29163913 Contact to this supplier Related Search Waterproof Led Driver LED Driver Dmx Led Driver Current Led Driver Dimming Led Driver 18w Led Driver More>> Find more related products in following catalogs on Hisupplier.com Electronic & Electrical >> Electronics Agents × Company Info Shenzhen Dongdahua Technology Co., Ltd., [China (Mainland)] Business Type:Manufacturer City: Shenzhen Province/State: Guangdong Country/Region: China (Mainland) View Contact Details You May Like: prev LED Power Supply Driver Power Supply for... Power Supply for LED led power supplies LED Strip Power Supply 24 volt power sup... Power LED Supply LED Power Supply Driver Power Supply for LED Constant Current LE... LED Strip Power Supply LED Power Supply ... LED Power Supply Driver Constant Current... Power LED Supply Power Supply for LED Power Supply for LED LED Power Supply Dr... LED Power Supply Driver 24 volt power su... Over-voltage Protection Reliable LED Dri... Over-voltage Protection 12 Volt LED Powe... IR 24 Keys 5 Volt LED RGB Remote Control... Built-in EMI Filters 12 Volt LED Power S... Green Wireless 12V 144W RGB LED Remote C... Common Cathode 24V DC LED RGB Remote Con... Highly Reliable LED Driver Power Supply ... Highly Reliable LED Driver Power Supply ... Rustproof Engineering Box 12 Volt LED Po... 3 Color Changing 12V DC LED RGB Remote C... Overload Protection Reliable LED Driver ... IP20 12 Volt LED Power Supply EN61347 - ... IP20 15W 12 Volt LED Power Supply EN5502... 2500mA 12 V DC 30W Waterproof LED Driver... 24V DC 1A 20W Waterproof LED Driver Swit... Natural Cooling Standard 24 Volt DC Powe... Short-circuit Protection Standard 24 Vol... Stable 24 Volt DC 200W Waterproof LED Dr... Energy Saving 50Hz 150W Waterproof LED D... Built-in EMI Filter Standard 24 Volt DC ... Low Ripple and Noise Standard 24 Volt DC... Energy Saving Wall Light LED RGB Remote ... 288W 24V DC Flexible LED Strip Lights RG... Overload Protection Standard 24 Volt DC ... Overload Protection Standard 24 Volt DC ... Overload Protection 12 Volt LED Power Su... 100W 20A IP20 EPA3050B Over-voltage Prot... 60W 12 Volt LED Power Supply 5A IP45 Wit... 20W 1670mA GB4943 Waterproof LED Light D... 120W 5A Waterproof 24V DC LED Driver Sin... EPA7196 120W Waterproof AC To 12V DC LED... Long Life 24V DC 30W Waterproof LED Driv... 60Hz IP68 Waterproof LED Driver 150W 6.5... White Switching 12V DC Waterproof LED Po... next Product (44) Others (44) Printable Page Bookmark this page Sitemap XML About HiSupplier Help Center Customer Service Friend Links Site Map Archives Browse by: China Suppliers - Hot Products - Products Directory - Offers Directory - Suppliers Directory - Buyers Directory Language Option: العربية - Nederlands- Français- Deutsch- Italiano- 日本語- 한국의- Português- Pусский- Español Copyright © HiSupplier.com Online Inc. All Rights Reserved.
